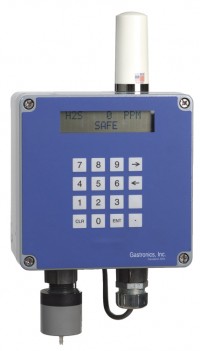

The Gastronics’
True Wireless�
Transmitters
feature a unique
patented method
of wireless
monitoring that
eliminates not
only the high
installation
costs of
hardwired
systems, but the
cost of wireless
RTU’s.
The Gastronics’
True Wireless�
Transmitters
incorporate up
to a 5 watt UHF
(450-470mHZ)
radio directly
into the gas
transmitter,
thus eliminating
the need for
wiring to a
Remote Radio
Terminal Unit
(also known as
an RTU). A
typical radio
telemetry system
using RTU’s,
while reducing
significant
installation
costs, still
requires both
the high cost of
the RTU as well
as the
installation
costs to wire
the gas monitor
to the RTU. The
True Wireless�
Transmitters go
a step further
by completely
eliminating the
need for the RTU
as well as the
associated
installation
costs.
The Gastronics’
True Wireless�
Transmitters are
designed to
radio transmit
PPM levels,
battery voltage
and alarm
information
directly to one
or more
Gastronics
RTU’s. The
keypad on the
face of the True
Wireless�
allows the user
to configure
site addresses,
trigger on
change levels,
analog
filtering,
STEL/Hi/HiHi
alarms and
security access
codes. A
separate
maintenance
security access
code allows an
authorized
maintenance
person to access
sensor
calibration
settings from
the same keypad.
The True
Wireless�
Transmitter
radio strength
is sufficient to
penetrate in and
out of
buildings,
throughout an
industrial plant
facility and
miles beyond.
