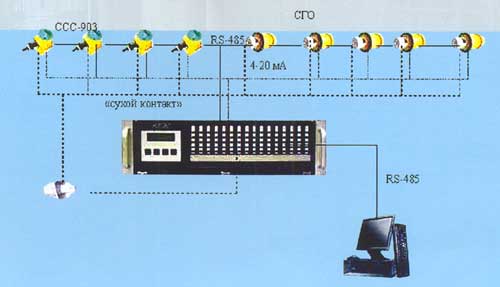

SGAES-TN (TG)
consists of gas analyzers and control panel
UPES.
Applications
The system can be used both separately and
as part of automatic control system at
industrial facilities for control of gas
concentration in ambient air. In case if set
concentration thresholds are exceeded, the
system will give out light and sound alarm
as well as signals to the executing
machinery (outer warning system, air
conditioning, pump and hardware shutdown,
etc)
Specification
| |
UPES-30
|
UPES-40
|
Quantity
of channels:
-
analog (4-20 mА)
-
digital
(RS-485) |
1-16
-------
|
1-16
From
1
to
480
|
Quantity
of programmable
thresholds |
2-3 |
2-3 |
|
Type
of signalization |
light,
sound, “dry” contact
|
light,
sound, “dry” contact |
Line length
between gas
analyzers and control panel |
Up to
1200
m |
from 1200 m up to
5000 m
via RS-485 |
|
Data
exchange (outputs) |
RS-485, RS-232, 4-20
mА,
“dry” contact
|
RS-485/422,
RS-232/USB, 4-20 mА,
“dry” contact
|
|
Power supply |
220V,
50Hz |
220V,
50Hz |
Detection of
wire break
and type of failure |
automatic |
automatic |
Features and
Benefits
- high accuracy of gas concentration control
via output up to � 0,1% LEL;
- full autonomy and interchangeability of
channels;
- high durability of power supply;
- improved jam-protection;
- possibility to duplicate channel setting
by buttons;
- resetting of channels by buttons;
- possibility of UPES programming without
programmer and nonstandard cables via
RS-232 or RS-485 by the customer;
- possibility to set thresholds up to 100%
LEL;
- zero and sensitivity settings during the
exploitation.
|
Model |
Advantages
|
|
UPES-30 |
full
autonomy and interchangeability of
channels;
high
durability of power supply;
improved jam-protection;
data
exchange via outputs 4-20 mА,
“dry” contact, RS-485. |
|
UPES-40 |
improved
accuracy of gas concentration
control via output
up to � 0,1% LEL;
full
autonomy and interchangeability of
channels;
possibility
to connect primary analyzers via
RS-485 and 4-20 mA
high
durability of power supply;
improved
jam-protection;
possibility
to duplicate channel setting by
buttons;
resetting
of channels by buttons;
possibility
of UPES programming without
programmer and
nonstandard cables via RS-232 or RS-485 by the customer;
possibility
to set thresholds up to 100% LEL;
zero and
sensitivity settings during the
exploitation.
|
