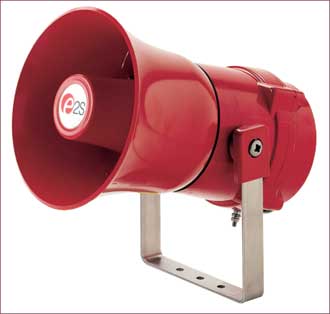

The flameproof BExS110 alarm sounders
are suitable for Zone 1 &
Zone 2 applications and the BExDS110
sounders also for Zone 21 & 22.
Sound level ouputs are up to 117dB(A) at
1 metre with a choice of 32 alarm tones
and 3 remotely selectable stages. The
BEx range features enclosures
manufactured from corrosion proof,
marine grade copper free LM6 aluminium
which is phosphated and powder coated.
The re-entrant flare horns are high
impact, fire retardant ABS. All models
have two M20 cable entries, large
termination areas containing in & out
terminals (Ex de version only) and an
ingress protection of IP66/67 (Ex d) and
IP66 (Ex de).
For fire applications the BExS110D 24V
dc siren is CPD EN89/106/EEC compliant
(EN54-3 tested).
Features :
• Automatic synchronisation on
multi-sounder system.
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’
bracket.
• IN & OUT terminals (Ex de version
only).
• ‘Programmable’ version available:
- 45 alarm tones
- 4 remotely selectable stages
- Any tone can be assigned to any stage
- User configurable continuous frequency
tone
